How Do You Tell The Difference Between Cat5e And Cat6 Cable?

Ethernet connections, like technology, are evolving at a rapid pace. Every few years, a new ethernet cable is released that increases data transfer speeds and bandwidth capacity while also providing a higher level of communication. Cat5e Cable, Cat6 Cable, Cat7 Cable, and Cat8 Cables are the most generally accessible ethernet cables these days.

Cat5e Ethernet Cable and Cat6 Ethernet Cable are the most popular cables for domestic and commercial use. But which is the better option for you? Let’sLet’s have a look.

Cat5e Cable

Cat5e Cable is one of the best and most expensive ethernet cables available. It’sIt’s a fifth-category cable, but it’s a better one. The cable supports data transfer rates of 1 Gbps and 100 Mbps; maximum data transfer rates are attained when the cable runs up to 50 meters (164 feet), while minimum data transfer rates are achieved when the cable runs up to 100 meters (328 feet).

When it comes to Cat5e Ethernet Cable bandwidth capacity, the TIA/EIA standards specify that the fifth category should have a minimum bandwidth capacity of 100 MHz. However, certain high-quality manufacturers produce Cat5e cable with a 350 MHz bandwidth capacity.

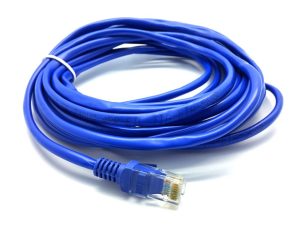

cat5e

The cable is available in the following variants:

Plenum
Riser
PVC
Direct Burial

The CMP-rated thick outer jacket, which is not only UV-resistant but also fire-retardant, distinguishes the plenum type of Cat5e Cable. It means that if a fire breaks out, the plenum jacket will produce no dangerous gases or smoke while also stopping the spread of the fire. Buildings employ plenum jackets within the areas of the plenum. Due to its thickness, the thick jacket provides exceptional protection against all outside interferences, such as crosstalk and electromagnetic interference. You have legal permission to run Cat5e plenum cables in the riser and outside areas. However, the situation cannot be reversed due to fire safety concerns.

Buildings with high-risk riser spaces can benefit from Cat5e riser ethernet cable. This type, too, provides good crosstalk and EMI protection. In addition, riser cables have excellent UV and fire resistance.

Burial in the open Cat5e Ethernet cables is commonly used in underground applications. These cables have LLDPE jackets that are waterproof and provide excellent bug protection.

All four variations have the same core structure. It has eight conductors, all of which are either pure copper or copper-clad aluminum. By tightly bundling these 8 conductors together, we are able to eliminate both external and internal interference. The Cat5e cable is 24AWG and complies with the TIA/EIA, CE, CSE, ISO/IES, and RoHS standards.

Cat6 Cable

Cat6 Ethernet Cable is a type of ethernet cable that corresponds to the sixth category. Data transfer speed and bandwidth are the only two characteristics that distinguish it from fifth-category cable.

While Cat5e cables have a maximum data transfer rate of 1 Gbps, Cat6 cables have a maximum data transfer rate of 10 Gbps, which is ten times quicker. The same is true for minimum data transfer speeds; Cat6 has a minimum data transmission rate of 1 Gbps, 10 times faster than Cat5e.

In terms of bandwidth capacity, according to TIA/EIA regulations, a 6th category cable should have a bandwidth capacity of 550 MHz.

It’sIt’s also available in four other configurations: plenum, riser, PVC, and direct burial, with jackets identical to Cat5e cable. In addition, there are eight conductors, each made of pure copper or copper-clad aluminum.

Which is better for me: Cat5e or Cat6?

It is solely dependent on one factor: your requirements.

Commercial settings tend to use Cat6 ethernet wire, but domestic settings tend to use Cat5e cable.

The pricing element is another issue that may impact the decision. If money is an issue, Cat5e is the most cost-effective choice. If money isn’t an issue, though, Cat6 cable is the way to go.
